***OEM CARB REPLACEMENT PARTS***

650 Central Premium BS34 Jet Kit
for Mikuni BS34 CV carbs as used on North American
model 1980-84 XS650's

650 Central now offers the finest BS34 jet kit available, featuring Grade 2 titanium (98.9% pure) needles and genuine Mikuni jets.

Unlike raw aluminum needles, which are subject to ethanol corrosion, and somewhat fragile,

titanium is extremely corrosion resistant and makes for the strongest needles available.

Genuine Mikuni jets are precision broached and then chamfered to flow-rated spec, to hold the EPA-mandated 5% tolerance.


               Kit Contains:   2 Titanium slide needles with clips
           2 Mikuni pilot jets
                           4 Mikuni main jets (2 sizes)
                                                 1 Drill bit for slide dampening modification
                        Instructions for tuning with various Exhaust & Carb/Intake setups

#CCEN14-1160 ..... $60.00



Carb Kits
For the 1970 & 1971 Models. Each kit contains:
float bowl gasket, a complete float valve, choke plunger & spring,
 slide needle and all jets(42.5 &130) to rebuild (1) OEM Carb.
Order Two.

#CMXS48-1917 ..... $15.50 each

Carb Kits
For the 1972-1973 Models. Each kit contains:
a slide needle & clip, 42.5 pilot & 130 main jets, float needle assembly,
air screw with spring, and float bowl
gasket to rebuild (1) OEM Carb.
Order Two.

#CMXS48-1918..... $15.50 each

Carb Kits
For the 1974-1975 Models. Each kit contains:
a slide needle & clip, 42.5 pilot & 130 main jets, float needle assembly,
air screw with spring, choke cover gasket, and float bowl
gasket to rebuild (1) OEM Carb.
Order Two.

#CMXS48-1919..... $15.50 each

Carb Kits
For the 1976-1977 Models. Each kit contains:
a slide needle clip, pilot & main jets (27.5&135), float needle assembly,
pilot fuel screw with spring, choke plunger, spring & cover gasket, and
float bowl gasket to rebuild (1) OEM Carb.
Order Two.

#CMXS48-1920..... $17.50 each

Carb Kits
For the 1978-1979 Models. Each kit contains:
 pilot & main jets(27.5&135), float needle assembly, fuel
screw with spring, choke plunger, spring & cover gasket,
and float bowl gasket to rebuild (1) OEM Carb.
Order Two.

#CMXS48-7879..... $21.00 each

Carb Kits
For the 1980-1984 Models. Each kit contains:
 float needle assembly,
carb rubber passage plug,
 and float bowl gasket to rebuild (1) OEM Carb.
Order Two.

#CMXS48-1408..... $13.50 each

Carb Kits
For VM 30-34 aftermarket aluminum carbs. Each kit contains:
a slide clip, needle valve washer, float needle assembly
main jet plug washer and O-ring and (2) float bowl
gasket to rebuild (1) Carb.
Order Two.

VM30-34 rebuild kit ......#CCEN14-1430.... $24.95 each



*****************************************************

Float Bowl Gaskets
XS650 B/C/D/E/F/2F/SE/SF 75-79


#CMXS20-7029 ...... $4.50 each

Float bowl gaskets
XS650 1980 - 1984

#CMXS20-5020 ........ $4.50 each

Carb float-Genuine Mikuni
XS
1/2, TX650/A, XS650 B/C/D/E/F/2F/SE/SF '70-79

#CSUDmi002.114 ..... $16.25 each

Needles & Seats
Carb needles and brass screw in seats for the '70-79
XS650 . Sold each. Order two.

#CMXS48-5019 .... $10.00 Sold Each

Needles and Seats
Float needles and brass push in seats for the '80-84
 Sold each. Order two.

#CMXS48-1445..... $11.00 Sold Each

**********************************************************



Carburetor Holders '80-84

Carb Boot sets w/gaskets for the 80-84 models.
Meet or exceed OEM specification
. Made in Japan

OK FOR USE WITH ETHANOL

Sold by the pair only.

#CKNL11-6239 ..... $59.95

Carburetor Holders '74-79

Carb Boot sets for the
74, 75, 76, 77. Will fit 78 and 79 models. See below.
NO BARBS
Meet or exceed OEM specification
. Made in Japan

OK FOR USE WITH ETHANOL

Sold by the pair only.

#CSUD00-5878..... $49.95

Carb Barbs

I

Barb installation in '70-74 OEM BS38s

Install on BS38s for carb synching or vacuum petcocks. Tap required. Will replace blanking plugs on OEM '76-79 BS38 CVs

6mm 6x1.0  #CMCS50-08219 ..... $8.95 Sold Each



Carb Boot gaskets
XS650 1970 - 1984

#KCEN18-0865 ........ $6.50/pr.

Carburetor Holders '70-73

http://jbmindustries.com/HOLDERS.html

**********************************************************

Product Photo

Slide Diaphragms
XS650 G/H/Special II/SG/SH/SJ/SK '80-84

#CMXS20-6028 ..... $90.00 each


XS650 1970 thru '77

#CMXS20-6029 .....    $159.00 each

Replacement diaphragms ONLY

http://jbmindustries.com/Yamaha650.html

******************************


OEM Style Fuel Petcocks
(Left side shown)
Brand new petcocks are available for replacement of the right or left side
petcock on your 1970-1977 Yamaha with Non-Vacuum style petcocks.
They come complete with the O-Ring seal, have ON-OFF-RES positions.
These replace Yamaha part number 447-24500-02 and 447-24510-02.
The bolt hole spacing on these is 43mm. Right and Left sides
are determined as you sit on the bike.
As there is no filter screen on these, we recommend use of
our inline fuel filters to protect your carbs.

Right hand   #CKNL18-4175.... $43.00 each

Left hand   #CKNL18-4176.... $43.00 each

Rebuild kit '73-77    #CMXS20-0014.... $16.50 each



Vacuum Petcock Rebuild Kit

Includes all parts necessary, including diaphragm
XS650, 1978 & 1979 thru '84

'78 after eng #006505 &'79-84    #CKNL18-2699.... $35.95 each

78 to engine #006505                  #CKNL18-2697.....$49.00 each



Manual Petcock to replace Vacuum Petcock



Includes  O-ring & fuel pickup filter
  XS650, 1978 thru '84

    #CMANPET ..... $48.00 each

Petcock mounting screw kit  #CMXS20-0020..... $2.00





Motion Pro Petcock

This clean little petcock has 1/4" pipe threads & a 1/4" barb.
For Paughco and aftermarket tanks. Not for use with stock tanks.

1/4" MP petcock          #CTKR15-0997 ....... $20.00 each





90 Petcock

This clean little petcock has 1/4" pipe threads & a 1/4" barb.
For Paughco and aftermarket tanks. Not for use with stock tanks.

1/4" 90 petcock          #CTMA15-2356 ....... $20.00 each



*******************************

Genuine Mikuni Main Jets

For  Mikuni BS38 Series Carbs: '70-79    N102.221 Small Round

Stock sizes: '70-73, #130;    '74-75, #127.5;     '76-77, #122.5;    '78-79, #135

Sold each, Order 2.

#125 jet, #CSUDmi004.295 ........ $4.15 each

#127.5 jet, #CSUDmi004.296 ..... $4.15 each

#130 jet, #CSUDmi004.297......... $4.15 each

#132.5 jet, #CSUDmi004.298 ..... $4.15 each

#135 jet, #CSUDmi004.299 ......... $4.15 each

#137.5 jet, #CSUDmi004.300 ..... $4.15 each

#140 jet, #CSUDmi004.301 ......... $4.15 each

#142.5 jet, #CSUDmi004.302 ..... $4.15 each

 #145 jet, #CSUDmi004.303 ......... $4.15 each

For  Mikuni BS34 Series Carbs: '80-84   N100.604 Large Round

Stock sizes: '80-84, #132.5

Sold each, Order 2.

#132.5 jet, #CSUDmi004.193...... $4.15 each

#135 jet, #CSUDmi004.194......... $4.15 each

#137.5 jet, #CSUDmi004.195 ..... $4.15 each

CALL FOR MORE SIZES

**************************************

Genuine Mikuni Pilot Jets
For  Mikuni BS38 Series Carbs: '76-79;  VM round slides VM22/210

Stock sizes: '76-77, #25;    '78-79, #27.5

Sold each, Order 2.

#20 jet, #CSUDmi004.004......... $4.15 each

#22.5 jet, #CSUDmi004.005 ..... $4.15each

#25 jet, #CSUDmi004.0046....... $4.15 each

#27.5 jet, #CSUDmi004.007 ..... $4.15 each

#30 jet, #CSUDmi004.008......... $4.15 each

 #32.5 jet, #CSUDmi004.593 ...... $4.15 each

#35 jet, #CSUDmi004.009 ......... $4.15 each

  #37.5 jet, #CSUDmi004.594.......$4.15 each

#40 jet, #CSUDmi004.010 ......... $4.15 each

CALL FOR MORE SIZES

Pilot Jets
For  Mikuni BS38 & BS34 Series Carbs: '70-75;   '80-84   BS30/96

Stock sizes: '70-73, #42.5;   '74-75, #45;    '80-84, #42.5

Sold each, Order 2.

#42.5 jet, #CSUDmi004.059 .... $4.15 each

#45 jet, #CSUDmi004.060.........$4.15 each

#47.5 jet, #CSUDmi004.061 .....$4.15 each

#50 jet, #CSUDmi004.062.........$4.15 each

******************************

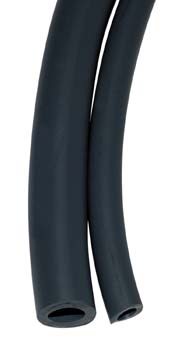

TYGON FUEL LINE

Tygon fuel line the the highest quality available. Resistant to sunlight, hardening, cracking and kinking. Flexible from ---35˚ F to +165˚F.

Clear 1/4" #CSUDmi009-041......  $5.25/ft.

Black 1/4" #CSUDmi009-042......  $5.25/ft.



BRASS FUEL "T" FITTING

A quality fuel "T", made of brass 1/4"

#CSUDmi009.100..... $7.50 each

Inline Fuel Filters

An inexpensive way to protect your nice clean carbs is with these
inline sintered element fuel filters.
About 1" long, they fit standard XS650 fuel line.

#MKNL19-1270.... $3.29

Inline 90 Fuel Filters

A 90 version of the above model can ease installation
issues. A porous bronze element provides 75 micron filtration.
About 1" long, they fit standard XS650 fuel line.

#MSUD00-9215..... $3.89

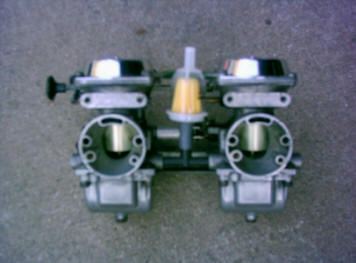

Inline Paper Fuel Filter



Paper elements offer the finest filtering to protect your nice clean carbs.
Bulkier than the sintered element fuel filters above, but can be made to fit 80-84 below the carb tops.
About 1.75" long, they fit standard XS650 fuel line.

#MCEN25-4150..... $4.99

Fuel Tank Repair Kit



We have saved many  fuel tanks with Kreem.
When applied according to the instructions, it
seals leaks and puts an end to poor performance
due to plugged fuel filters and petcocks.
Each kit contains 3 bottles, one each of Prep
Solvent, Cleaner/Etcher and Sealer.

#EDIX38-0242 ..... $47.95
